Heavy-Duty, Metal Shoulders, Color Coded
MADE IN USA
Pulling Grips X Series Model X-HDFE, Heavy-Duty
Description
Pulling Grips X Series Model X-HDFE have following unique features that are shared among X Series grips family:
Pulling Grips X Series Model X-HDFE are designed for large work loads and rugged conditions. The heavy-duty X-HDFE models incorporate the use of exceptionally strong mesh, reverse weave, single wire bail and abrasion-resistant metal shoulders. These grips are made of tough un-coated aircraft strand galvanized wire. They are color coded for quick identification and organized storage.
The X Series grip is designed with the ball bearing swivel user in mind. The single wire eye allows a swivel to be attached to the grip easily and helps to alleviate any binding that may occur in the throat of the
X Series Grips Model X features metal sleeves (shoulders) near the top of the grip to eliminate wear when pulling through clay conduit, gravel or other abrasive pulling environments during a pull.
Models & Specifications
| Part No. | Size Range | Color | WL lbs. | UTS lbs. | Mesh | Eye |
|---|---|---|---|---|---|---|
| X-HDFE-1/4-1/2 | 1/4" - 1/2" | Brown | 1,200 | 3,600 | 22" | 6" |

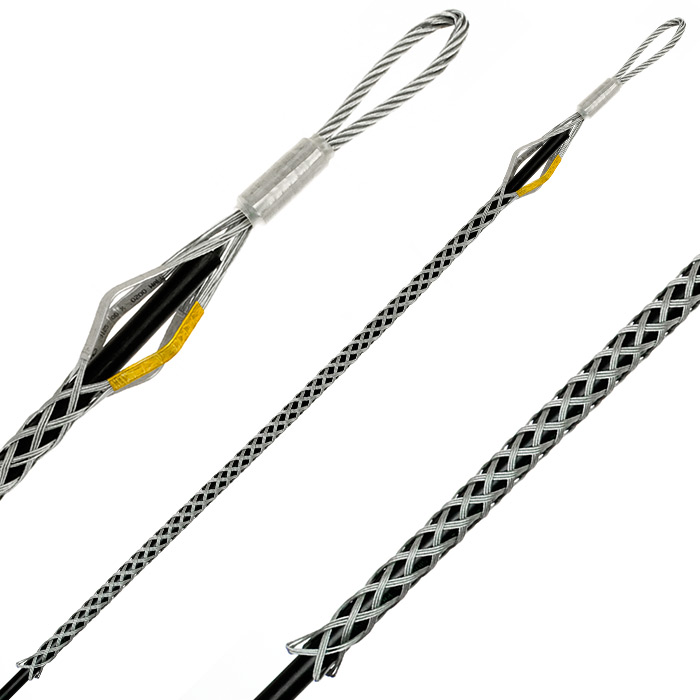

| X-HDFE-1/2-7/8 | 1/2" - 7/8" | Yellow | 2,400 | 7,200 | 42" | 8" |

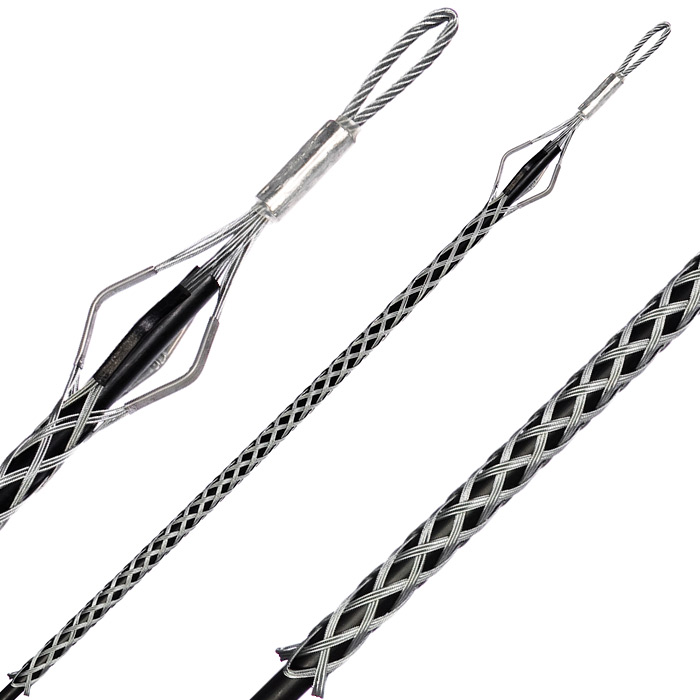

| X-HDFE-7/8-1 3/8 | 7/8" - 1 3/8" | Black | 5,700 | 17,100 | 48" | 9" |
| X-HDFE-1 3/8-2 | 1 3/8" - 2" | Green | 9,600 | 28,800 | 50" | 9" |
| X-HDFE-2-2 3/4 | 2" - 2 3/4" | Orange | 11,500 | 34,500 | 52" | 9" |
| X-HDFE-2 3/4-3 1/2 | 2 3/4" - 3 1/2" | Purple | 13,500 | 40,500 | 54" | 9" |
| X-HDFE-3 1/2-4 1/4 | 3 1/2" - 4 1/4" | Red | 15,300 | 45,900 | 56" | 9" |
| X-HDFE-4 1/4-5 | 4 1/4" - 5" | Lt. Blue | 17,900 | 53,700 | 58" | 9" |
WARNING!
Read and follow all relevant Safety & Operating Instructions before using this product. It is important that you read and understand all breaking strength, safety and technical data relating to all Lewis Manufacturing Company products before use.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
For any questions or comments regarding safe usage of this product, please
