Flex Eye, Metal Shoulders, Reverse Weave
MADE IN USA

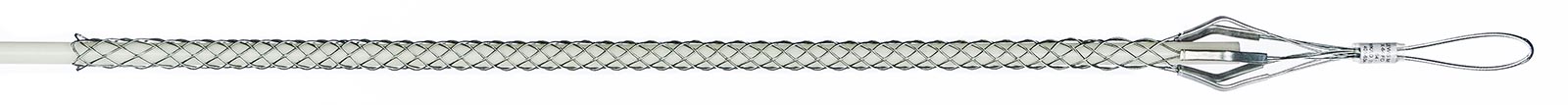

Pulling Grips X-FO Fiber Optics
Description
Pulling Grips X-FO Fiber Optics Series are designed for pulling and installation of fiber optic cables in overhead, underground and conduits and enclosures. The grips are equipped with a flexible pulling eye (flex eye) and utilize reverse weave construction.
The grips are manufactured with high strength galvanized wire. Add “SS” to the end of the part number if stainless steel mesh is desired. Pulling Grips X-FO Fiber Optics is a member of X Series grips family.
Pulling Grips X-FO Fiber Optics Features:
Application — X-FO model grips are used for pulling fiber optic cables in overhead, underground, conduits and enclosures.
Flexible Eye — smooth surface and flexible eye makes the Pulling Grips X-FO Fiber Optics an excellent tool for pulling cables in and around confined areas.
Metal Shoulders — by enclosing the grip, the aluminum shoulder protectors of the pulling grip center the grip within a raceway and keeps the cables safe from abrasions.
The Reverse Weave of X-FO models eliminates the end crimping tabs and insures that the grip and cable will pass smoothly through even the tightest blocks, sheaves, bullwheels, etc.
Pulling Grips X-FO Fiber Optics series grips are identified by tags beneath the heavy duty clear tubing.
Check out the other X Series Models!
Various models of X Series Pulling Grips are designed for large work loads and rugged conditions:
The heavy-duty X-HDFE models incorporate the use of exceptionally strong mesh, reverse weave, single wire bail and abrasion-resistant metal shoulders. These grips are made of tough un-coated aircraft strand galvanized wire. They are color coded for quick identification and organized storage.
The X Series grip is designed with the ball bearing swivel user in mind. The single wire eye allows a swivel to be attached to the grip easily and helps to alleviate any binding that may occur in the throat of the
X Series Grips Model X features metal sleeves (shoulders) near the top of the grip to eliminate wear when pulling through clay conduit, gravel or other abrasive pulling environments during a pull.
Models & Specifications
| Part No. | Size Range | WL lbs. | ABS lbs. | Mesh |
|---|---|---|---|---|
| X-10-FO-SW-10 | 0.10" - 0.25" | 500 | 1,500 | 10" |
| X-25-FO-SW-14 | 0.25" - 0.37" | 500 | 1,500 | 14" |
| X-37-FO-SW-24 | 0.25" - 0.50" | 750 | 2,200 | 24" |
| X-42-FO-SW-24 | 0.42" - 0.61" | 750 | 2,200 | 24" |
| X-53-FO-SW-24 | 0.53" - 0.74" | 750 | 2,200 | 24" |
| X-64-FO-SW-24 | 0.64" - 0.87" | 750 | 2,200 | 24" |
| X-75-FO-SW-24 | 0.75" - 1.00" | 750 | 2,200 | 24" |
| X-100-FO-SW-24 | 1.00" - 1.25" | 750 | 2,200 | 24" |
| X-125-FO-SW-24 | 1.25" - 1.50" | 750 | 2,200 | 24" |
Download Brochure
WARNING!
Read and follow all relevant Safety & Operating Instructions before using this product. It is important that you read and understand all breaking strength, safety and technical data relating to all Lewis Manufacturing Company products before use.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
For any questions or comments regarding safe usage of this product, please
