Double, Triple, or Penta Weave, 1/4″ to 1,ooo MCM
MADE IN USA

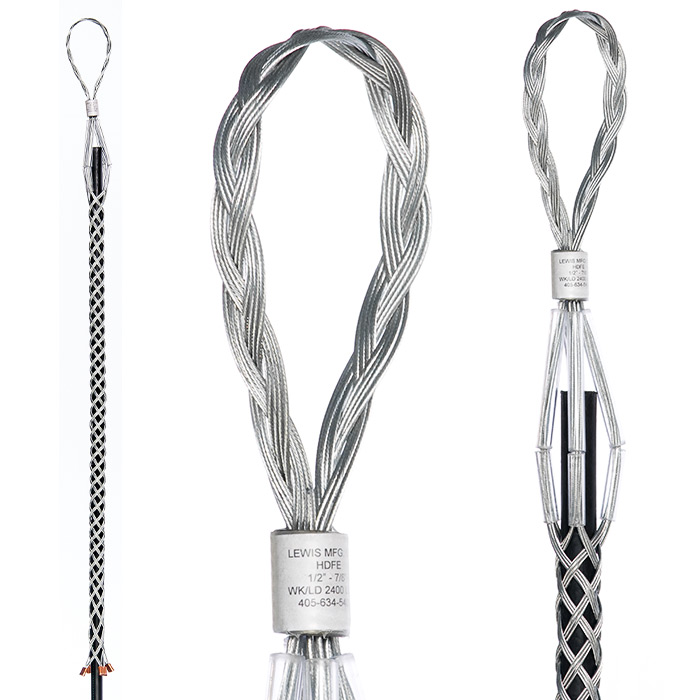

Pulling Grips Overhead Model HDFE Flex Eye
Description
Pulling Grips Overhead Model HDFE Flex Eye is a heavy-duty powerful grip for pulling big conductors and will travel smoothly through pulleys.
It is made of the highest quality, flexible aircraft strand steel, integrated with a flexible eye (pulling eye). The eye itself is composed of braided strands (rather than being rigid) to give it maximum flexibility in going around angle pulls or through small openings. Strands of the grip are retained at the head by a stainless steel spring, eliminating a rigid compression sleeve.
Check out other Lewis Overhead Pulling Grips!
Overhead type wire mesh pulling grips are used for Cable and Wire Rope Pulling and installation of them overhead on the transmission lines.
Specifications
| Part No. | Size Range | WL lbs. | UTS lbs. | Mesh | Eye |
|---|---|---|---|---|---|
| HDFE-1/4-1/2 | 1/4" - 1/2" | 1,200 | 3,600 | 22" | 4" |
| HDFE-1/2-7/8 | 1/2" - 7/8" | 2,400 | 7,200 | 42" | 6" |
| HDFE-7/8-1 3/8 | 7/8" - 1 3/8" | 5,700 | 17,100 | 48" | 7" |
| HDFE-1 3/8-2 | 1 3/8" - 2" | 9,600 | 28,800 | 50" | 7" |
| HDFE-2-2 3/4 | 2" - 2 3/4" | 11,500 | 34,500 | 52" | 7" |
| HDFE-2 3/4-3 1/2 | 2 3/4" - 3 1/2" | 13,500 | 40,500 | 54" | 7" |
| HDFE-3 1/2-4 1/2 | 3 1/2" - 4 1/2" | 15,300 | 45,900 | 56" | 7" |
| HDFE-4 1/2-5 | 4 1/2" - 5" | 17,900 | 53,700 | 58" | 7" |
| HDFE-5-5 3/4 | 5" - 5 3/4" | 17,900 | 53,700 | 60" | 7" |
| HDFE-5 3/4-6 1/2 | 5 3/4" - 6 1/2" | 17,900 | 53,700 | 60" | 7" |
WARNING!
Read and follow all relevant Safety & Operating Instructions before using this product. It is important that you read and understand all breaking strength, safety and technical data relating to all Lewis Manufacturing Company products before use.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
