Double, Triple, or Penta Weave, 1/4″ to 1,ooo MCM
MADE IN USA

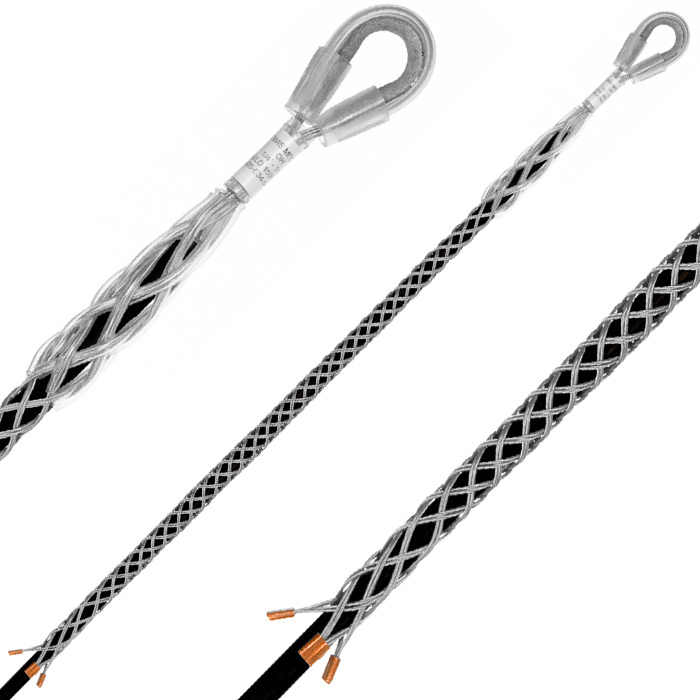

Pulling Grips Overhead Model OH, Std. Mesh
Description
Pulling Grips Overhead Model OH Series are designed for the special demands of overhead stringing crews, with a basket constructed of woven Nylon Coated Aircraft Strand for maximum abrasive resistance.
NOTE: Pulling Grips Overhead Model OH made with uncoated wire gives approximately 20% more strength. Please specify when ordering If you wish to have your grips manufactured with uncoated wire.
It has special tough plastic boots at eye-end to prevent abrasion between the conductor and pulling dollies. A steel thimble is manufactured into the eye and is furnished without swivel or steel thimble on request.
Model OH grips are easily adaptable to Lewis ball bearing swivels.
Specifications
| Part No. | Size Range | WL lbs. | UTS lbs. | Weave | Mesh | Eye |
|---|---|---|---|---|---|---|
| OH-DW-1/4-1/2 | 1/4" - 1/2" | 1,500 | 4,500 | Double | 24" | 3" |
| OH-TW-1/2-7/8 | 1/2" - 7/8" 3/0 - .336 MCM | 3,200 | 9,600 | Triple | 42" | 4" |
| OH-TW-7/8-1 1/4 | 7/8" - 1 1/4" .477 - .795 MCM | 4,100 | 12,300 | Triple | 48" | 4" |
| OH-5W-1 1/4-1 3/4 | 1 1/4" - 1 3/4" .795 - 1.000 MCM | 6,300 | 18,900 | Penta | 51" | 4" |
WARNING!
Read and follow all relevant Safety & Operating Instructions before using this product. It is important that you read and understand all breaking strength, safety and technical data relating to all Lewis Manufacturing Company products before use.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
For any questions or comments regarding safe usage of this product, please
