Same as OH Model but Shorter Mesh, 1/4″ to 1-1/4″
MADE IN USA

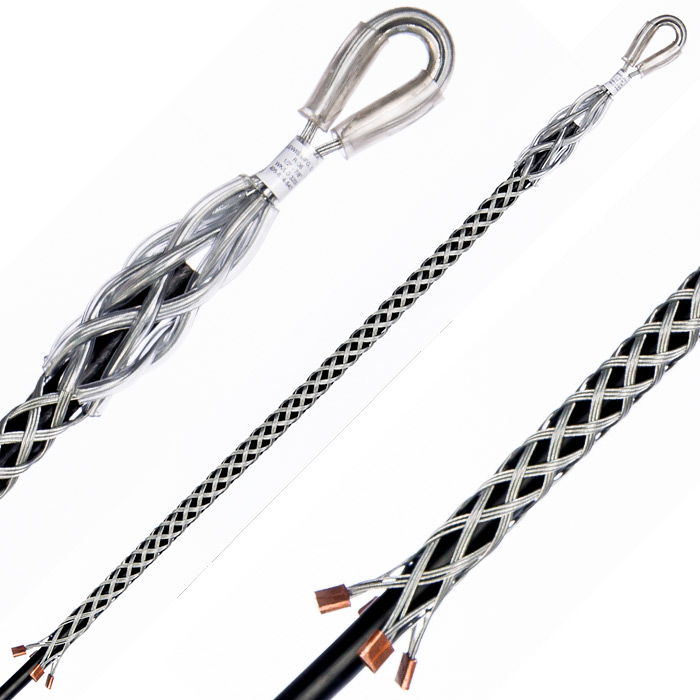

Pulling Grips Overhead Model R, Short Mesh
Description
Pulling Grips Overhead Model R Series is basically the same grip in size and basket construction as the Model OH; however, it is somewhat shorter. This grip is used in pulling all types of wire rope.
Pulling Grips Overhead Model R Series with short mesh are designed for the special demands of overhead stringing crews, with a basket constructed of woven Nylon Coated Aircraft Strand for maximum abrasive resistance.
NOTE: Pulling Grips Overhead Model R made with uncoated wire gives approximately 20% more strength. Please specify when ordering If you wish to have your grips manufactured with uncoated wire.
It has special tough plastic boots at eye-end to prevent abrasion between the conductor and pulling dollies. A steel thimble is manufactured into the eye and is furnished without swivel or steel thimble on request.
These grips are easily adaptable to Lewis ball bearing swivels.
Specifications
| Part No. | Size Range | WL lbs. | UTS lbs. | Weave | Mesh | Eye |
|---|---|---|---|---|---|---|
| R-DW-1/4-1/2 | 1/4" - 1/2" | 1,500 | 4,500 | Double | 18" | 3" |
| R-TW-1/2-7/8 | 1/2" - 7/8" | 3,200 | 9,600 | Triple | 36" | 4" |
| R-TW-7/8-1 1/4 | 7/8" - 1 1/4" | 4,100 | 12,300 | Triple | 42" | 4" |
WARNING!
Read and follow all relevant Safety & Operating Instructions before using this product. It is important that you read and understand all breaking strength, safety and technical data relating to all Lewis Manufacturing Company products before use.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
