Cable & Hose Management,
Bundling & Protection, 3/4″ to 4-1/2″
MADE IN USA

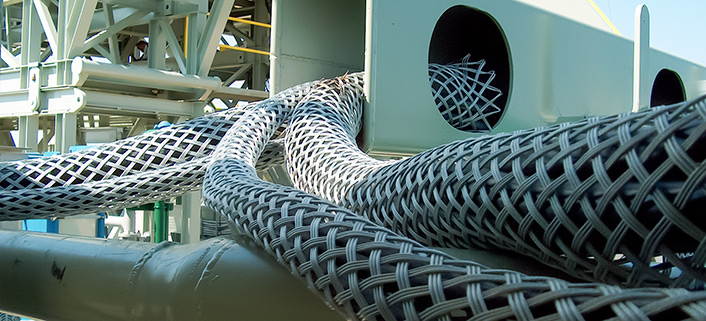

Bundle Keeper Grips Model BK-O
Cable & Hose Management,
Description

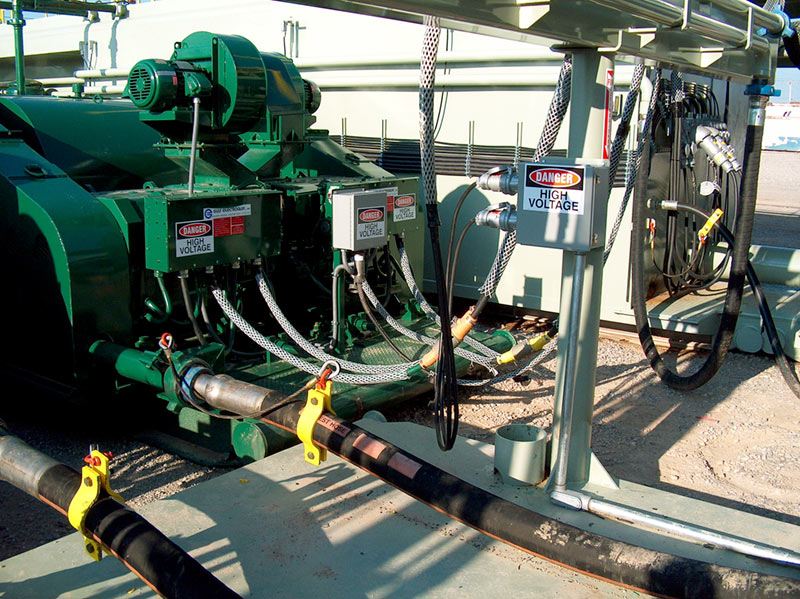

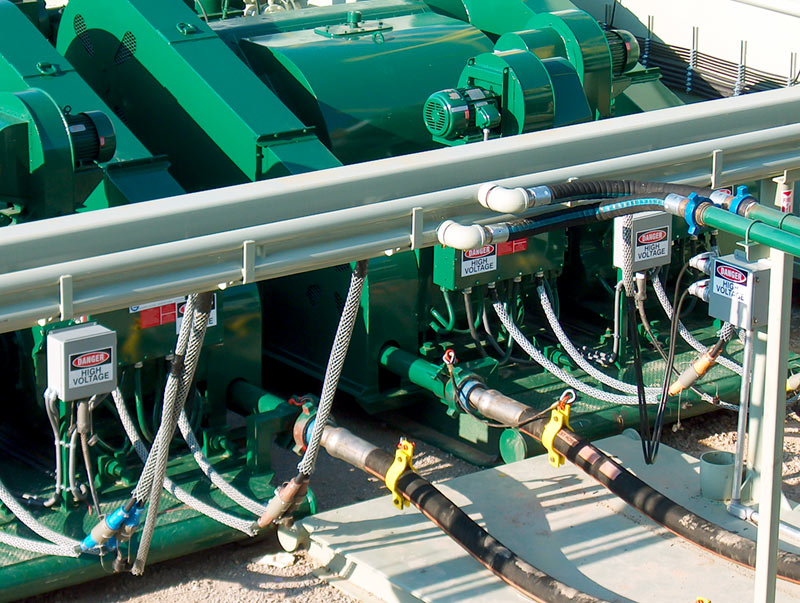

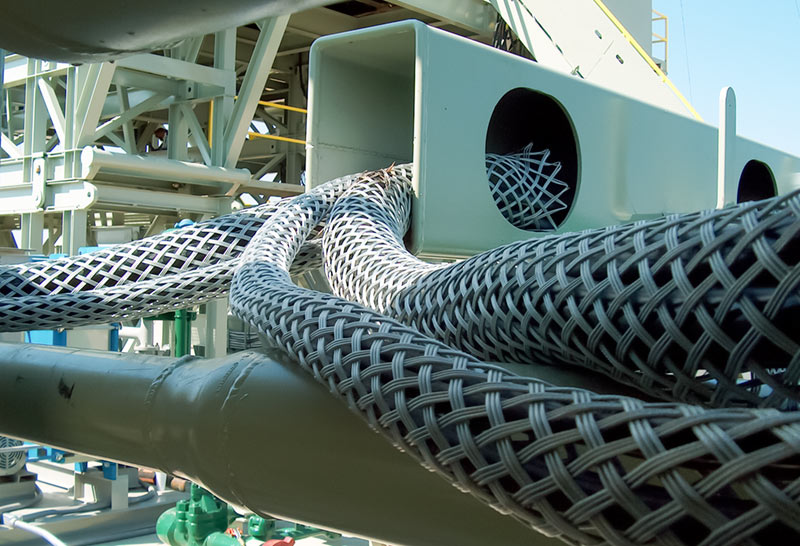

Bundle Keeper Grips Model BK-O Series is used for bundling, organizing and protection. The Bundle Keeper grips can also be used on hydraulic & pneumatic lines that may need an extra measure of protection & organization.
Bundle Keeper Grips Model BK-O Features:
The specification table (Specifications Tab) lists the most popular sizes in Bundle Keeper grips. However, if you need a different length of mesh please contact us.
Specifications
| Part No. | Size Range | WL lbs. | UTS lbs. | Weave | Mesh |
|---|---|---|---|---|---|
| BK-A-O-TW-48 | 3/4" - 1 1/4" | 2,500 | 5,000 | Triple | 48" |
| BK-B-O-TW-120 | 1 1/4" - 2" | 3,500 | 7,000 | Triple | 120" |
| BK-C-O-TW-60 | 2" - 2 3/4" | 4,500 | 9,000 | Triple | 60" |
| BK-D-O-TW-48 | 2 3/4" - 3 1/2" | 5,500 | 11,000 | Triple | 48" |
| BK-D-O-TW-60 | 2 3/4" - 3 1/2" | 5,500 | 11,000 | Triple | 60" |
| BK-D-O-TW-120 | 3 1/2" - 4 1/4" | 6,500 | 13,000 | Triple | 120" |
This table lists the most popular sizes in Bundle Keeper grips. However, if you need a different length of mesh please contact us.
WARNING!
Read and follow all relevant Safety & Operating Instructions before using this product. It is important that you read and understand all breaking strength, safety and technical data relating to all Lewis Manufacturing Company products before use.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
For any questions or comments regarding safe usage of this product, please
