Connects to Directional Boring bit, with Grease Zerk
MADE IN USA
Directional Boring Knuckle Joint Swivel LKJ-1301
Description
Directional Boring Knuckle Joint Swivel LKJ-1301 is a patented Knuckle Joint and HD-3-S-Z Ball Bearing Swivel combination that connect the pulling swivel to the popular “Duckbill” style directional bits.
Both the Knuckle Joint and HD-3-SZ swivel are equipped with a Grease Zerk.
Connecting ball bearing swivel to a duck bill bit caused the swivel to protrude at an angle that caused premature wear and tear on both the swivel and the bit, but LKJ-1301 SOLVES that Problem!
The Knuckle Joint Swivel is equipped with a Grease Zerk that is located in a convenient and easy to access location that allows greasing of the swivel without having to take any pins out.
Knuckle Joint Swivel is manufactured from high-grade pre-stressed steel.
These patented ball bearing swivels are designed for HDD Boring / Directional Boring applications that require a greasable swivel.
Proper placement of thrust and radial bearing allow thrust & shock loads to be absorbed without affecting rotation of swivel. Pins are screwdriver removable.
Knuckle Joint HDD Swivel LKJ-1301 allows the swivel to be pulled back in a straight line. This speeds up the process of pulling back, reducing the amount of drag that previously had to be addressed.
It helps eliminate wear and tear on directional boring bits by maximizing the strength of the usable bolt size and minimizing bending of the attachment point hole.
The LKJ-1 quickly and easily attaches and detaches with one Allen head bolt. It can be ordered with either a saucer shaped deflector or the standard guard, depending on customer preference. The deflector and the guard help prevent shear loads and prevent costly pull back hangups.
Models / Specs

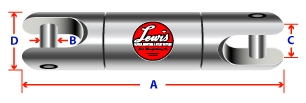

| Part No. | WL lbs. | UTS lbs. | A | B | C | D |
|---|---|---|---|---|---|---|
| LKJ-1301 | 21,000 | 63,000 | 10" | 3/4" | 3/4" | 2" |
Greasing Instructions
NOTE: Above instructions cover the HD-S-Z swivels that have the same greasing, care and maintenance procedure as the Knucle Joint swivel.
WARNING!
READ THE FOLLOWING BEFORE USING LEWIS BALL BEARING SWIVELS
- It is essential to inspect all Lewis swivels before and after each use.
- If the swivel is loose and/or the bearings feel rough when rotated or are seized and cannot be rotated, the swivel should be removed from service immediately.
- Always select a swivel larger than the machine capacity.
- If a Lewis swivel is exposed to a load exceeding the posted work load it should be removed from service immediately, and a larger swivel should thereafter be used.
- It is important that you read and understand all breaking strength, safety & technical data relating to all Lewis Manufacturing Company products.
- Please order carefully. Do not exceed published working load on any Lewis swivel.
- Lubricate all greaseable swivels before and after each use.
For any questions or comments regarding safe usage of this product, please
