BOA Hose Grips™ (Lewis BOA™) Under Pressure Hose Whip Sock in Aramid Fiber, 1″ to 5-1/2″
MADE IN USA
Whip Sock BOA Hose Grips Aramid Fibers
Description

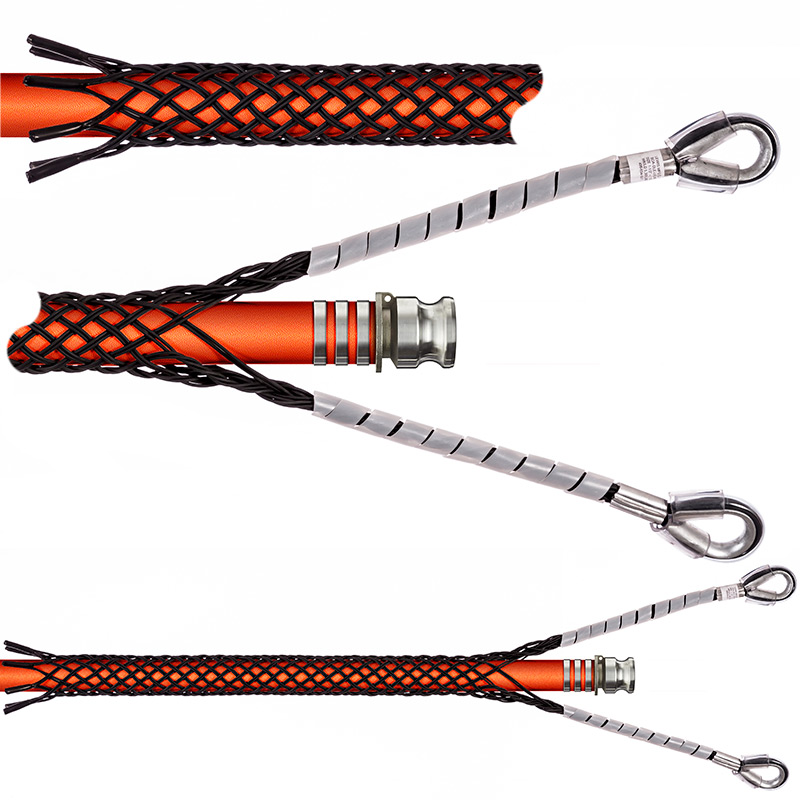

Whip Sock BOA Hose Grips Aramid Fibers, a line of Wire Mesh Grips that safely minimizes the dangerous high pressure hose whipping on blow out.
Hose grips similar to suspension grips, provide a strong slip resistance hold on a high pressure hose. The provide whipping protection (hose blow out protection) and keep the operator and equipment at the jobsite safe from hose blow out whipping action of the hose and its coupler fitting connector.
Whip Sock BOA Hose Grips Aramid Fibers (Lewis BOA™) ia part of Lewis Aramid Fiber grips. Also used as a Bundle Keeper grip, made of high strength Plastic Coated Non Conductive Aramid Fibers, provide hose abrasion resistance and wear protection near the coupler fitting, where needed the most.
Ideal for High Pressure Hose Carrying:
BOA Hose Grips Features:
Specifications
| Part No. | Size Range | WL lbs. | UTS lbs. | Mesh |
|---|---|---|---|---|
| DLE-LK-BOA-1.0-1.5 | 1" - 1.5" | 5,000 | 10,000 | 26" |
| DLE-LK-BOA-1.5-2.5 | 1.5" - 2.5" | 5,000 | 10,000 | 40" |
| DLE-LK-BOA-2.5-3.5 | 2.5" - 3.5" | 5,000 | 10,000 | 42" |
| DLE-LK-BOA-3.5-4.5 | 3.5" - 4.5" | 5,000 | 10,000 | 44" |
| DLE-LK-BOA-4.5-5.5 | 4.5" - 5.5" | 5,000 | 10,000 | 48" |
Add -SL to the Part No. for Split-Lace Closing
Brochure
Thrust Force Calculations
Use the following formulas for calculating the thrust force created by a broken high pressure hose. The force can be restrained by using a BOA Grip as a Whip Sock.
Reference and our Thanks:
Mark E. Dunbar, PhD, P.E.
Dunbar Engineering Corp
markd@dunbareng.com
WARNING!
Read and follow all relevant Safety & Operating Instructions before using this product. It is important that you read and understand all breaking strength, safety and technical data relating to all Lewis Manufacturing Company products before use.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
For any questions or comments regarding safe usage of this product, please
