Work Positioning Lanyard
Invest in Safety with genuine Lewis Equipment.™
MADE IN USA
Steel Tail Rope TR – Work Positioning
Description
Steel Tail Rope Work Positioning Lanyard Model TR provides a means of work positioning for the user when used along with a full body Fall Arrest Harness such as FW-3 or FW-5 harnesses and shock absorbing fall deceleration lanyard such as SLOWSTOP™.
A Tail Rope Lanyard provides a means of work positioning only for the user while working on oil rig or drilling platforms or any other aerial work platform location that has a danger of fall.
The lanyard along with a general full body harness becomes part of a Personal Fall Arrest System (PFAS) and meets or exceeds ANSI/ASSE Z359.1-2007 requirements.
Lewis Tail Ropes are not intended for fall arrest and/or fall deceleration.
The tail ropes have a work load of 300 lbs.
Two model types are available

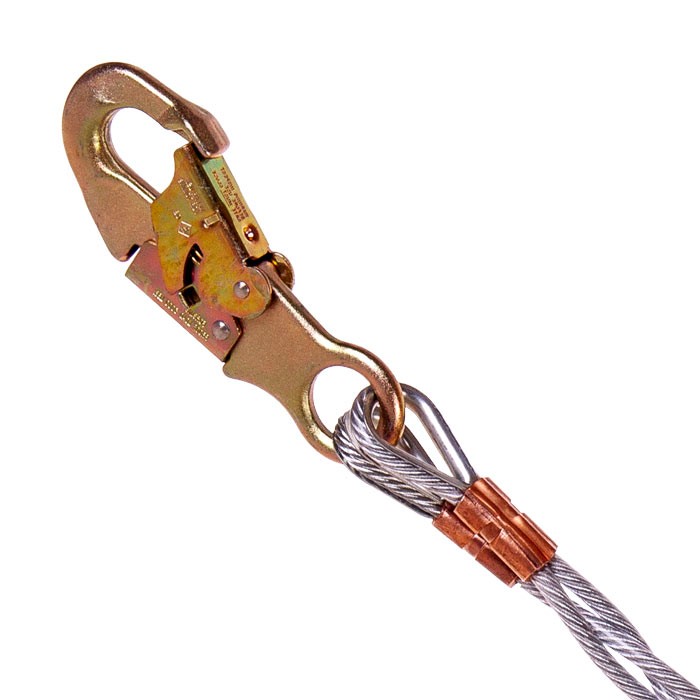

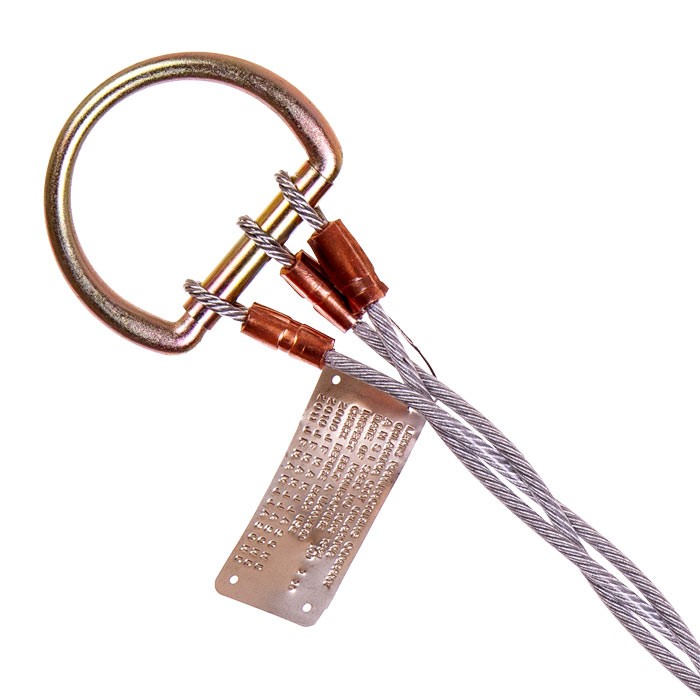

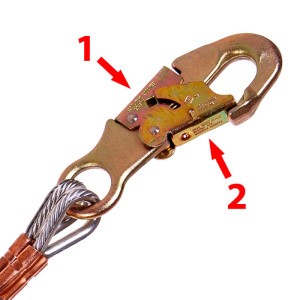

- TR-X-D-PC: model type D comes with a Dual Action Locking Rope Snap Hook on one end and a 3″ D-ring on the other end.

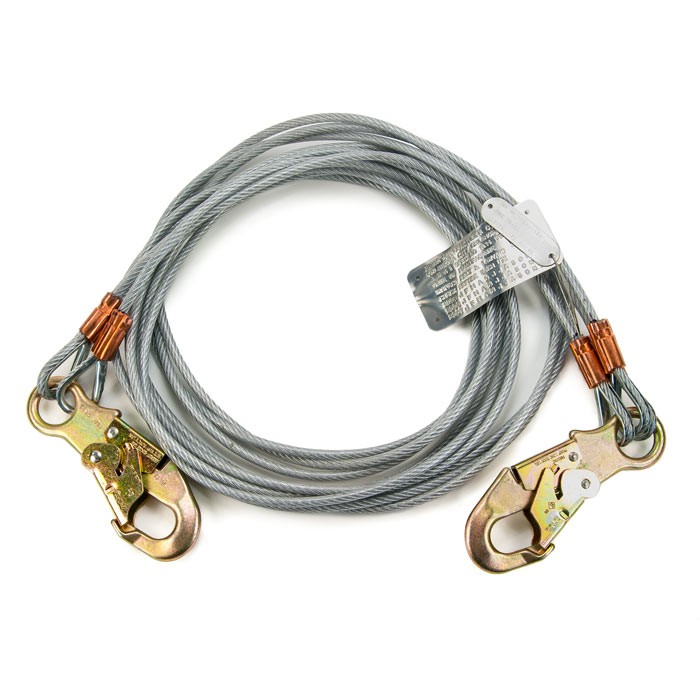

- TR-X-S-PC: model type S has Dual Action Locking Rope Snap on both ends.
- They are available in 2′ to 16′ lengths in 1′ increments.
As part of a Personal Fall Arrest System (PFAS) the tail rope shall be used along with other products for work positioning, climbing, or rescue. It shall be connected to the back waist belt of a the full body harness.
Steel Tail Rope Features:
« Meets or Exceeds ANSI/ASSE Z359.1-2007 »
« MAXIMUM WORKING LOAD IS 300 LBS. INCLUDING CLOTHING & GEAR »
Size Chart
| Part No. | Description | Length | End 1 - Belt | End 2 - Anchor | Work Load |
|---|---|---|---|---|---|
| TR-X-D-PC | Flexible Steel Tail Rope | See Note Below | Locking Rope Snap | D Ring | 300 lbs. |
| TR-X-S-PC | Flexible Steel Tail Rope | See Note Below | Locking Rope Snap | Locking Rope Snap | 300 lbs. |
NOTE: Replace the “X” in the part number with the length value from 2 to 16 in increments of 1. Contact us for length over 16′.
WARNING!
Read and follow all relevant Safety & Operating Instructions before using this product. It is important that you read and understand all breaking strength, safety and technical data relating to all Lewis Manufacturing Company products before use.
- Connectors and anchorage points must be comparable and able to support 5,000 lbs.
- Rig fall protection to regulatory requirements.
- Do not allow product to contact sharp or abrasive surfaces
- Snaphooks with gate openings larger than one inch (1”) must not be connected to d-rings on harnesses and belts.
- Inspect the lanyard before and after each use.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
