ZIP-GRIP™ with Zip Cord for Easy Tape Removal
MADE IN USA
Pulling Grips ZIP GRIP Z-XS
Description
Pulling Grips Zip Grip Z-XS is a new addition to X Series multipurpose pulling grips that make removing grip’s tape fast and convenient without using a knife that could damage the cable. ZIP-GRIP™ models have following unique features that are shared among X Series grips family.
Pulling Grips Zip Grip Z-XS Features:

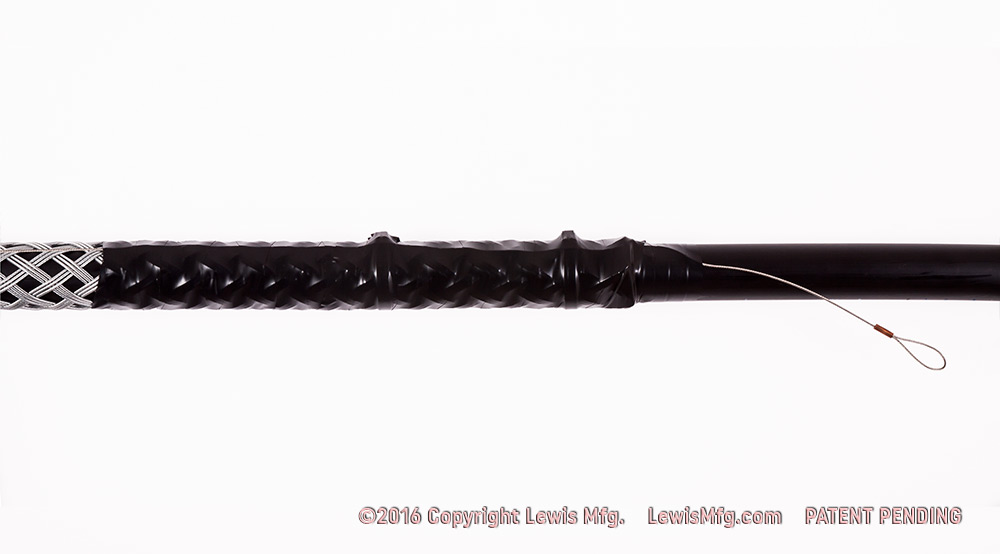

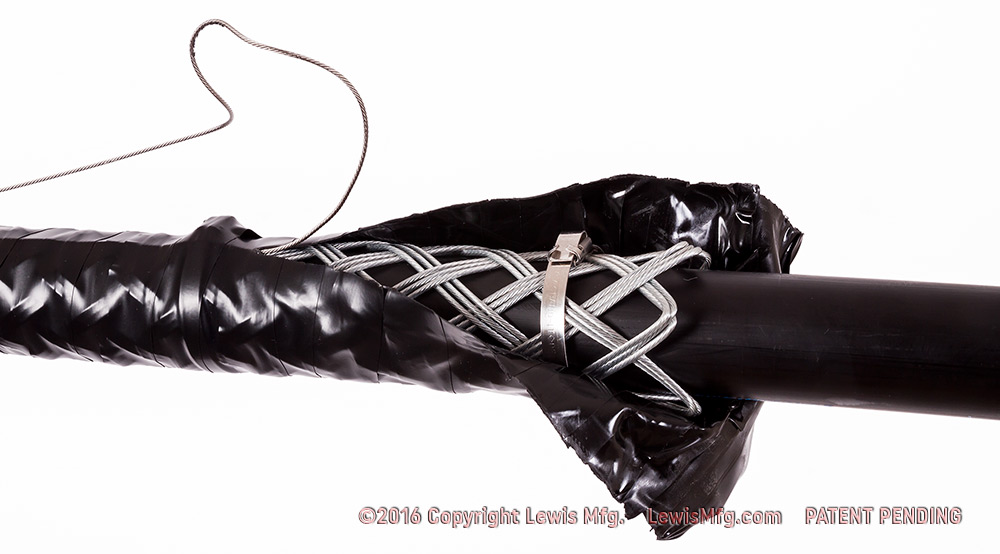

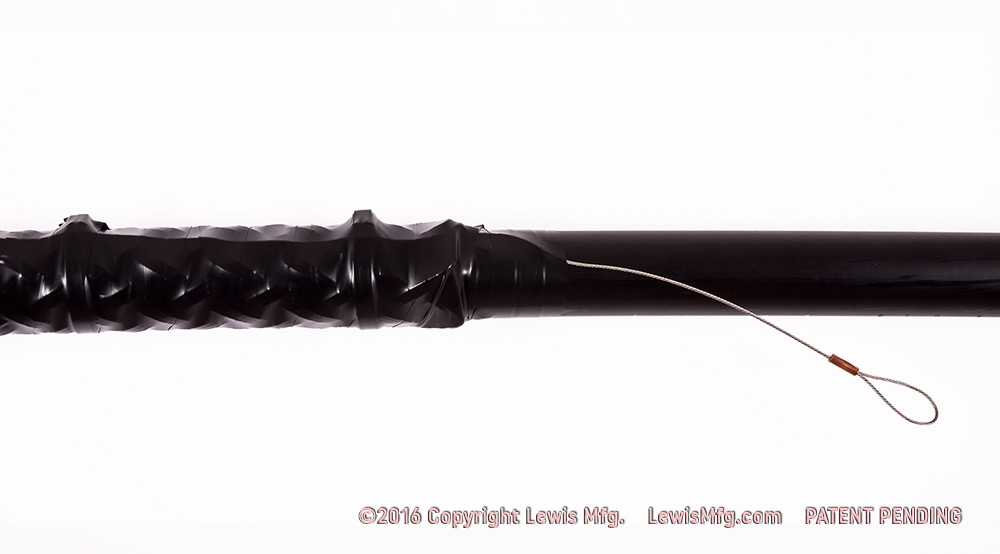

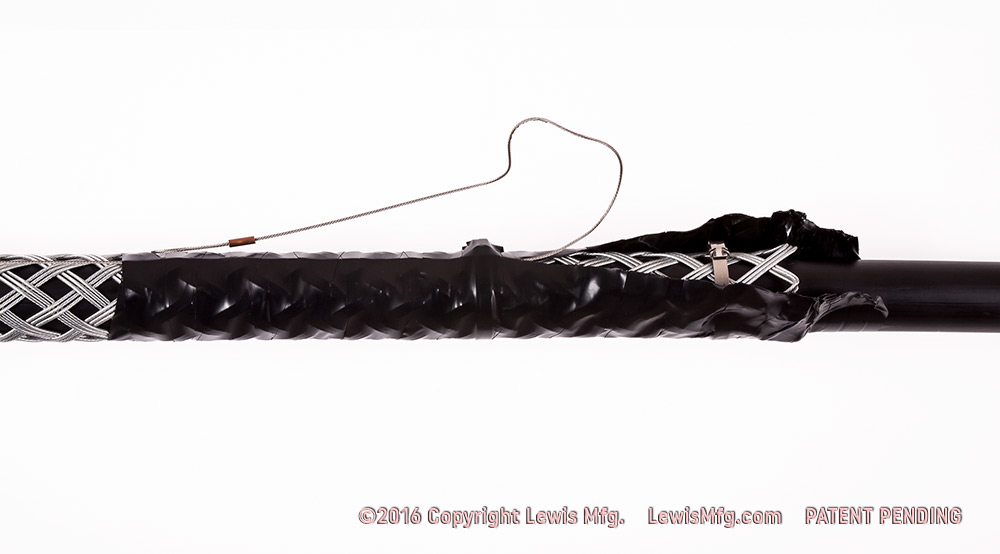

Pulling Grips Zip Grip Z-XS grips’s design incorporates a ZIP CORD that is a fine steel wire that lies over the grips mesh and the bands. While taping the grip and the bands the zip cord stays beneath the tape. After the pull is done the user can pull the cord and just like a zipper the cord rips and opens the tape layer. These grips feature coated galvanized cable, reverse weave, and a single wire bail.
Pulling Grips Zip Grip Z-XS series grips are identified by tags beneath the heavy duty clear tubing.
Model Z-XS features coated galvanized cable, reverse weave, and a single wire bail but do not have metal shoulders.
When a friction swivel is needed for the X-Series Pulling Grips, please refer to the following tables. To order a swivel built into a grip, add “W/S” to the end of the grip part number.
| X or XS Model | Swivel Size |
|---|---|
| A | 5/16" |
| B | 3/8" |
| C | 3/8" |
| D | 3/8" |
| E | 3/8" |
| F | 3/8" |
| G | 1/2" |
| H | 1/2" |
| I | 1/2" |
| J | 1/2" |
Specifications
| Part No. | Size Range | WL lbs. | UTS lbs. | Weave | Mesh | Eye |
|---|---|---|---|---|---|---|
| Z-XS-A-DW-24 | 3/4" - 1 1/4" | 2,000 | 6,000 | Dual | 24" | 5" |
| Z-XS-B-TW-26 | 1 1/4" - 2" | 2,500 | 7,500 | Triple | 26" | 6" |
| Z-XS-C-TW-32 | 2" - 2 3/4" | 3,500 | 10,500 | Triple | 32" | 7" |
| Z-XS-D-TW-38 | 2 3/4" - 3 1/2" | 4,500 | 13,500 | Triple | 38" | 7" |
Download Brochure
WARNING!
Read and follow all relevant Safety & Operating Instructions before using this product. It is important that you read and understand all breaking strength, safety and technical data relating to all Lewis Manufacturing Company products before use.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
For any questions or comments regarding safe usage of this product, please
