Multi Weave, Metal Shoulders, Color Coded
MADE IN USA
Pulling Grips X-MW Multi Weave Series
Description

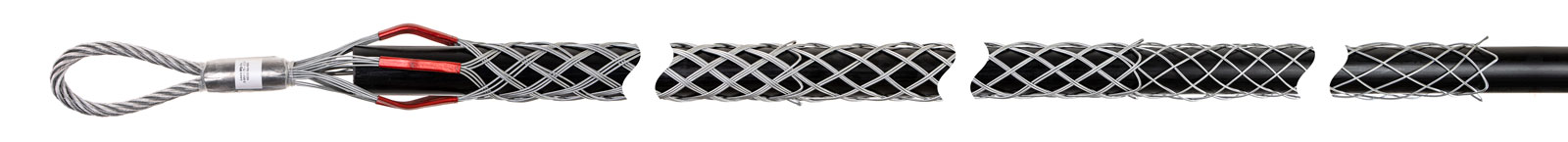

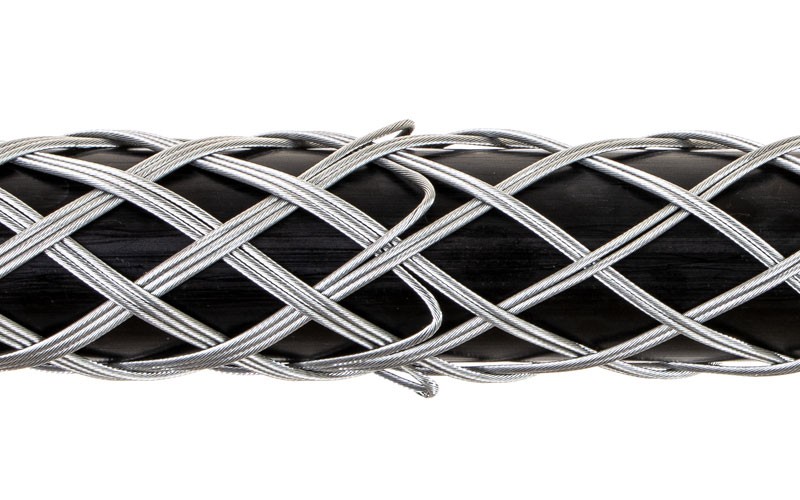

Pulling Grips X-MW Multi Weave Series are designed for overhead transmission and distribution lines and fiber optic cables installation/pulls. The grips is called 3-2-1 Multi-Weave since grips’ mesh is triple weave at the top, double weave in the middle and single weave at the end. They are constructed using galvanized steel.
Pulling Grips X-MW Multi Weave Series have following unique features that are shared among X Series grips family:
Pulling Grips X-MW Multi Weave Series Features:
X-MW model grips can be used for overhead transmission and distribution lines.
X-MW Also popular with fiber optics cable pulls and installation.
Adjustable Mesh Grip — smooth surface and flexible eye makes this wire pulling grip an excellent tool for pulling cables in and around confined areas.
Grip Protection — by enclosing the grip, shoulder protectors of the pulling grip center the grip within a raceway and keeps the cables safe from abrasions.
Application — this grip can be used in a range of applications for pulling bare insulated conductors, wire rope, insulated cables.

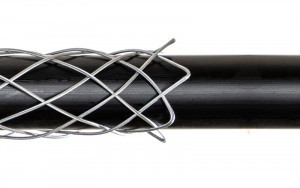

The reverse weave of X-MW models eliminates the end crimping tabs and insures that the grip and cable will pass smoothly through even the tightest blocks, sheaves, bullwheels, etc.

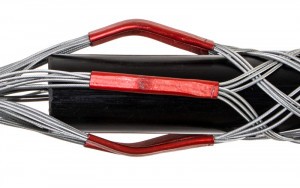

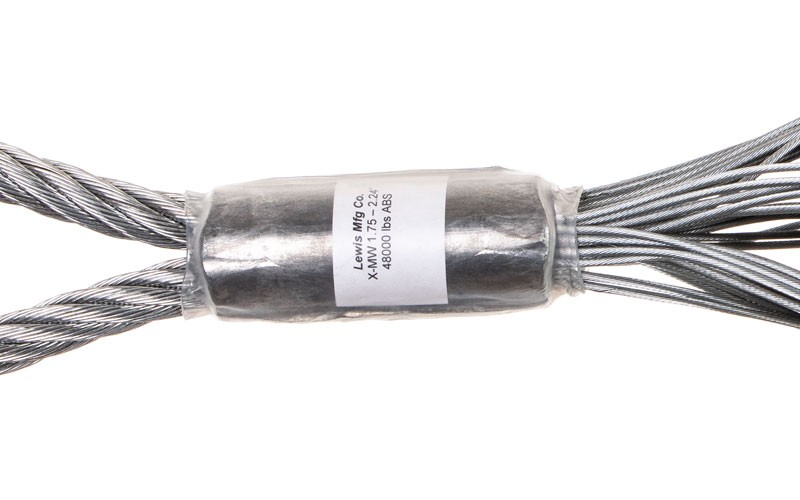

Pulling Grips X-MW Multi Weave series grips are identified by color-coded shoulders and tags beneath the heavy duty clear tubing.
Check out the other X Series Models!
Various models of X Series Pulling Grips are designed for large work loads and rugged conditions:
The heavy-duty X-HDFE models incorporate the use of exceptionally strong mesh, reverse weave, single wire bail and abrasion-resistant metal shoulders. These grips are made of tough un-coated aircraft strand galvanized wire. They are color coded for quick identification and organized storage.
The X Series grip is designed with the ball bearing swivel user in mind. The single wire eye allows a swivel to be attached to the grip easily and helps to alleviate any binding that may occur in the throat of the
X Series Grips Model X features metal sleeves (shoulders) near the top of the grip to eliminate wear when pulling through clay conduit, gravel or other abrasive pulling environments during a pull.
Models & Specifications
| Part No. | Size Range | Color | WL lbs. | ABS lbs. | Mesh | Eye |
|---|---|---|---|---|---|---|
| X-MW-.25-.49 | 0.25" - 0.49" | Dark Green | 1,200 | 2,400 | 26" | 5" |
| X-MW-.50-.74 | 0.50" - 0.74" | Brown | 3,500 | 7,000 | 32" | 5" |
| X-MW-.75-.99 | 0.75" - 0.99" | Lt. Blue | 4,500 | 9,000 | 41" | 6" |
| X-MW-1.00-1.24 | 1.00" - 1.24" | Gold | 9,600 | 19,200 | 52" | 8" |
| X-MW-1.25-1.49 | 1.25" - 1.49" | Black | 9,600 | 19,200 | 56" | 8" |
| X-MW-1.50-1.74 | 1.50" - 1.74" | Red | 11,200 | 22,400 | 60" | 9" |
| X-MW-1.75-2.24 | 1.75" - 2.24" | Dark Blue | 11,200 | 22,400 | 70" | 10" |
| X-MW-2.00-2.49 | 2.00" - 2.49" | Yellow | 16,300 | 32,600 | 50" | 10" |
| X-MW-2.50-2.99 | 2.50" - 2.99" | Orange | 16,700 | 33,400 | 52" | 10" |
| X-MW-3.00-3.49 | 3.00" - 3.49" | Aluminum | 16,700 | 33,400 | 54" | 10" |
| X-MW-3.50-3.99 | 3.50" - 3.99" | Lt. Green | 16,700 | 33,400 | 56" | 10" |
Download Brochure
See Page 2
WARNING!
Read and follow all relevant Safety & Operating Instructions before using this product. It is important that you read and understand all breaking strength, safety and technical data relating to all Lewis Manufacturing Company products before use.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
