Metal Shoulders, Standard & Short Mesh
MADE IN USA
Pulling Grips X Series Model X-SDW
Description
Pulling Grips X Series Model X-SDW have following unique features that are shared among X Series grips family:
[foogallery id=”1769″]

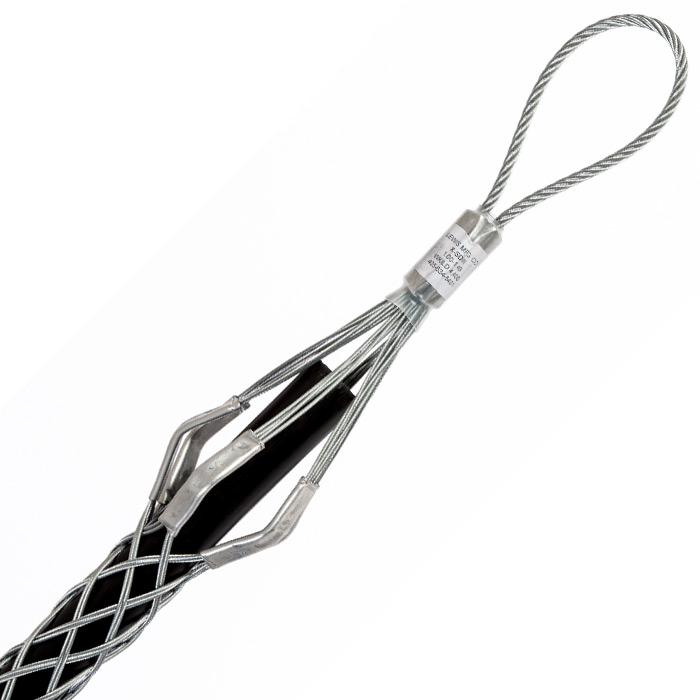

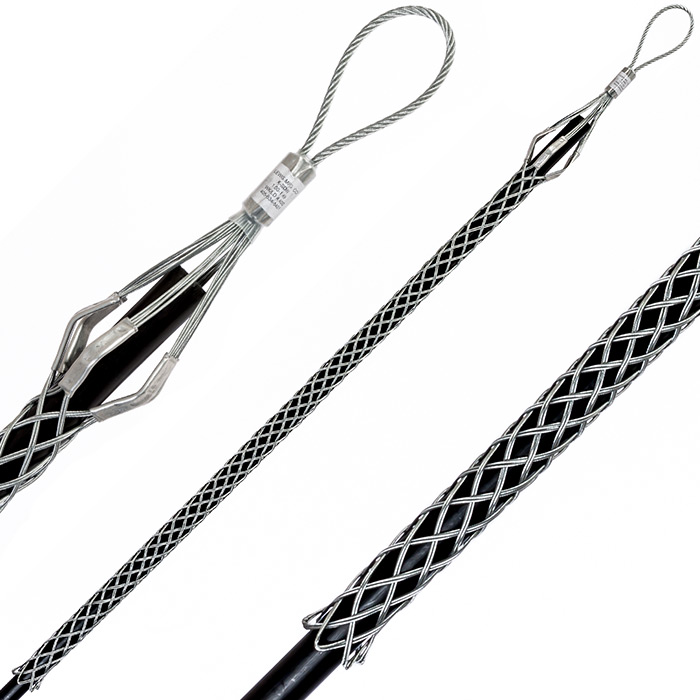

Pulling Grips X Series Model X-SDW feature coated galvanized cable, reverse weave, and a single wire bail and metal shoulders. All models have double weave construction. X-SDW series grips are identified by tags beneath the heavy duty clear tubing.
These grips are available in Standard Mesh lengths as shown in the table and Short Mesh lengths with all models having a 24″ long mesh.
Models & Specifications
X-SDW Standard Mesh
| Part No. | Size Range | WL lbs. | UTS lbs. | Mesh | Eye |
|---|---|---|---|---|---|
| X-SDW-.75-.99-36 | .75" - .99" | 2,200 | 4,400 | 36" | 5" |
| X-SDW-1.00-1.49-36 | 1.00" - 1.49" | 4,400 | 8,800 | 36" | 6" |
| X-SDW-1.50-1.99-36 | 1.50" - 1.99" | 5,500 | 11,000 | 36" | 6.5" |
| X-SDW-2.00-2.49-36 | 2.00" - 2.49" | 9,000 | 18,000 | 36" | 6.5" |
| X-SDW-2.50-2.99-36 | 2.50" - 2.99" | 11,000 | 22,000 | 36" | 7" |
| X-SDW-3.00-3.49-36 | 3.00" - 3.49" | 13,600 | 27,200 | 36" | 7.5" |
| X-SDW-3.50-3.99-36 | 3.50" - 3.99" | 16,000 | 32,000 | 40" | 8" |
X-SDW Short Mesh
| Part No. | Size Range | WL lbs. | UTS lbs. | Mesh | Eye |
|---|---|---|---|---|---|
| X-SDW-.62-.75-24 | .62" - .75" | 1,900 | 3,800 | 24" | 4" |
| X-SDW-.75-.99-24 | .75" - .99" | 2,200 | 4,400 | 24" | 5" |
| X-SDW-1.00-1.49-24 | 1.00" - 1.49" | 4,400 | 8,800 | 24" | 6" |
| X-SDW-1.50-1.99-24 | 1.50" - 1.99" | 5,500 | 11,000 | 24" | 6.5" |
| X-SDW-2.00-2.49-24 | 2.00" - 2.49" | 9,000 | 18,000 | 24" | 6.5" |
| X-SDW-2.50-2.99-24 | 2.50" - 2.99" | 11,000 | 22,000 | 24" | 7" |
| X-SDW-3.00-3.49-24 | 3.00" - 3.49" | 13,600 | 27,200 | 24" | 7.5" |
| X-SDW-3.50-3.99-24 | 3.50" - 3.99" | 16,000 | 32,000 | 24" | 8" |
WARNING!
Read and follow all relevant Safety & Operating Instructions before using this product. It is important that you read and understand all breaking strength, safety and technical data relating to all Lewis Manufacturing Company products before use.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
