Overhead & Underground Pulls
Color-Coded for easy identification of Phases
MADE IN USA
Pulling Grips Phase Grip ™
Overhead & Underground Pulls
Description
Pulling Grips Phase Grip ™ is a member of the new Identi-Grip ™ line of wire mesh grip products. The color coded nylon coating of these grips give them an excellent gripping power while providing a very rugged & abrasion resistance protection.

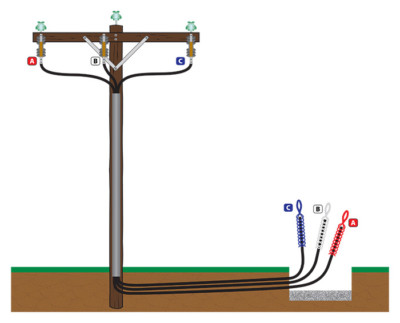

Pulling Grips Phase Grip devices are wire mesh grips typically used by Rural Electric Coops and Utility Contractors for overhead and underground pulls where identification of the phase cables while being pulled is required.
The Pulling Grips Phase Grips are available in a kit format. Each kit contains 3 grips, one of each of Red, White & Blue colors. Phase Grips are made of nylon coated steel wires and have a flexible eye that will become flattened during the pull to create a narrow profile that allows the tightest of clearances and alleviates grip’s eye distortion.
Models / Specs
| Part No. | Description | Cable | Size Range | WL lbs. | Qty & Color |
|---|---|---|---|---|---|
| 50-3054 | 1/0 Phase Grip Kit | 1/0 | 3/4" - 1 1/4" | 3,700 | 1 Red, 1 White, 1 Blue |
| 50-3055 | 4/0 Phase Grip Kit | 4/0 | 3/4" - 1 1/4" | 3,700 | 1 Red, 1 White, 1 Blue |
| 50-3056 | 500 MCM Phase Grip Kit | 500 MCM | 1 1/4" - 2" | 3,900 | 1 Red, 1 White, 1 Blue |
| 50-3057 | 750 MCM Phase Grip Kit | 750 MCM | 1 1/4" - 2" | 3,900 | 1 Red, 1 White, 1 Blue |
| 50-3058 | Single 1/0 Phase Grip | 1/0 | 3/4" - 1 1/4" | 3,700 | 1, Specify Color |
| 50-3059 | Single 4/0 Phase Grip | 4/0 | 3/4" - 1 1/4" | 3,700 | 1, Specify Color |
| 50-3060 | Single 500 MCM Phase Grip | 500 MCM | 1 1/4" - 2" | 3,900 | 1, Specify Color |
| 50-3061 | Single 750 MCM Phase Grip | 750 MCM | 1 1/4" - 2" | 3,900 | 1, Specify Color |
Download Brochure
WARNING!
Read and follow all relevant Safety & Operating Instructions before using this product. It is important that you read and understand all breaking strength, safety and technical data relating to all Lewis Manufacturing Company products before use.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
For any questions or comments regarding safe usage of this product, please
