Standard & SEG Swivel Eye Style, 1 to 4 Legs
MADE IN USA
Pulling Grips Collars, 1 to 4 Legs
Description
Pulling Grips Collars Models LPC and LPC-SEG have a staggering feature that is the key to reduce the stress on the conductors and maintaining their integrity.

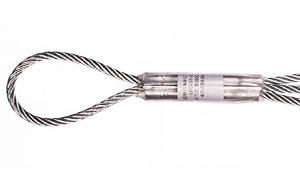

Pulling Grips Collars Model LPC
Standard Pulling Collar Model LPC is available with one to four legs. This pulling collar staggers the pull, thereby eliminating the problems associated with pulling large “bundles” of cables with only a single grip.
Pulling through a sweep becomes less stressful on the conduit system, because the cables do not enter the turn all at once.
This tool is of great importance to customers who are concerned about the integrity of their conduit system and who are pulling more than one
cable at a time. Pulling grips are attached to each collar eye with a swing link or swivel.

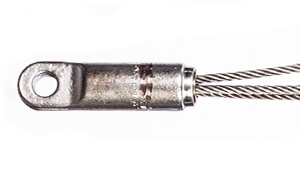

Pulling Grips Collars Model LPC-SEG
The Lewis Pulling Collar model LPC-SEG feature a built-in solid main pulling eye that is resistant to abrasion, and provides a solid main attachment point for the pulling line.
The swivel action of the eye is extremely helpful when cable twisting is a concern. The swivel is rounded and gives the user a smoother leading edge that will glide over seams and irregularities in the conduit system.
Specifications
Collar Ordering Part No. Construction:
Example:
LPC-S2–3L
* **
*Part Number Series (from Table)
** No of Legs needed: 1L, 2L, 3L, 4L
Standard Model LPC
| *Part No. Series | **Number of Legs Available | Total UTS lbs. |
|---|---|---|
| LPC-SJL | 1 to 4 | 2,000 |
| LPC-S1 | 1 to 4 | 5,500 |
| LPC-S2 | 1 to 4 | 8,200 |
| LPC-S3 | 1 to 4 | 9,800 |
| LPC-S4 | 1 to 4 | 14,000 |
Swivel Model LPC-SEG
| *Part No. Series | **Number of Legs Available | Total UTS lbs. |
|---|---|---|
| LPC-SEG-JL | 1 to 4 | 2,000 |
| LPC-SEG-1 | 1 to 4 | 5,500 |
| LPC-SEG-2 | 1 to 4 | 8,200 |
| LPC-SEG-3 | 1 to 4 | 9,800 |
| LPC-SEG-4 | 1 to 4 | 14,000 |
WARNING!
Read and follow all relevant Safety & Operating Instructions before using this product. It is important that you read and understand all breaking strength, safety and technical data relating to all Lewis Manufacturing Company products before use.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
For any questions or comments regarding safe usage of this product, please
