Single & Dual Weave, 1/4″ to 4″
MADE IN USA
Pulling Grips Ouchless Aramid Fibers Dual Eye
Description
The Ouchless Lewis Grips™ (Ouchless Grips) are made of plastic coated Aramid fibers that are light weight and yet much stronger than steel wires. These Aramid fiber grips are traditionally used in Overhead or Underground operations when pulling or suspending electric or fiber optic cables.
Pulling Grips Ouchless Aramid Fibers Dual Eye grips do not have the metallic fraying as traditional grips do thereby eliminating the chance of being injured from metallic strands that have been abraded.
Part of line of Ouchless Lewis Grips™, These grips are made of plastic-coated Aramid fibers.
The Aramid fibers can be used in essentially all Lewis Mfg.’s grip configurations. Ouchless Lewis Grips can also be used when a metallic grip is unsuitable, such as when pulling into an energized environment.

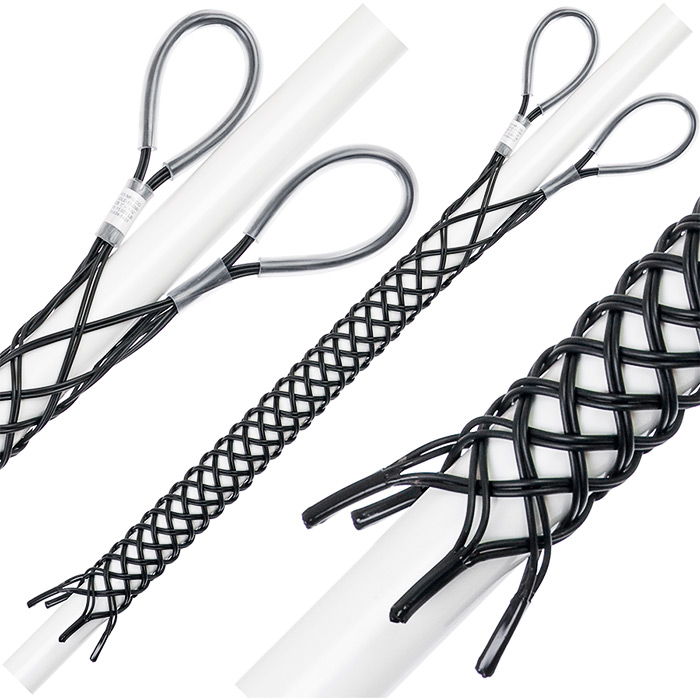

The Dual Eye (DLE) grips can be used for cable placement and suspension applications.
Pulling Grips Ouchless Aramid Fibers Dual Eye Features:
NOTE: The Aramid fibers can be used in essentially all grip configurations to make them Aramid Grips. However when used around coastal areas or in corrosive environments the Stainless Steel option is still superior.
NOTE: Always remember when using an pulling grip made of Aramid fibers strand or metal wire to tape the bare end of the cable that will be inserted into the grip. This will eliminate a sharp edge exposure and prolong the life of your grip.

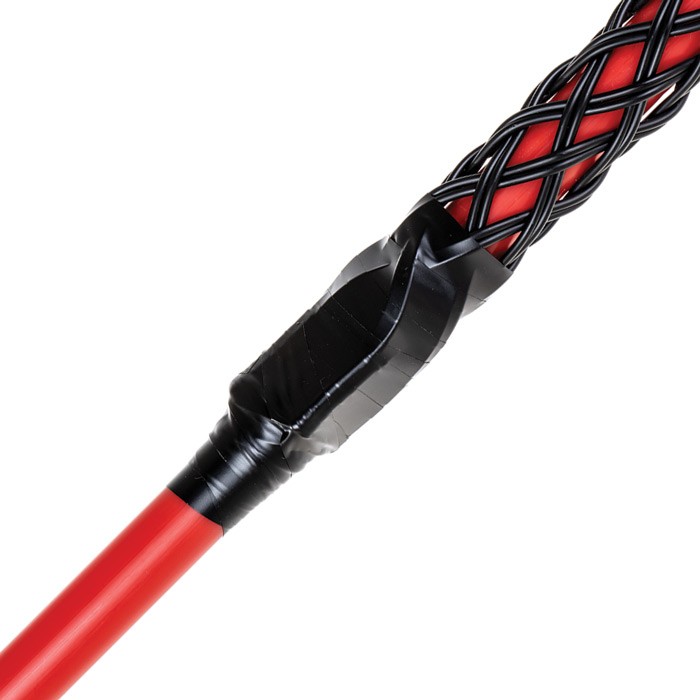

NOTE: Band Grips — Band the end of the Aramid Fibers grips using Electrical Tape ONLY. Do not use metal bands.
Specifications
| Part No. | Size Range | WL lbs. | UTS lbs. | Weave | Mesh | Eye |
|---|---|---|---|---|---|---|
| DLE-LK-SW-1/4-3/4 | 1/4" - 3/4" | 830 | 1,660 | Single | 24" | 4" |
| DLE-LK-SW-3/4-1 | 3/4" - 1" | 1,200 | 2,400 | Single | 24" | 4 1/2" |
| DLE-LK-SW-1 1/4-1 1/2 | 1 1/4" - 1 1/2" | 1,665 | 3,330 | Single | 24" | 5" |
| DLE-LK-SW-1-1 1/2 | 1" - 1 1/2" | 1,665 | 3,330 | Single | 44" | 5" |
| DLE-LK-SW-1 1/2-2 | 1 1/2" - 2" | 1,940 | 3,880 | Single | 44" | 5" |
| DLE-LK-DW-1 1/4-1 1/2 | 1 1/4" - 1 1/2" | 3,300 | 6,600 | Double | 24" | 5" |
| DLE-LK-DW-1-1 1/2 | 1" - 1 1/2" | 3,300 | 6,600 | Double | 44" | 5" |
| DLE-LK-DW-1 1/2-2 | 1 1/2" - 2" | 3,965 | 7,930 | Double | 44" | 5" |
| DLE-LK-DW-2-2 1/2 | 2" - 2 1/2" | 5,000 | 10,000 | Double | 44" | 5" |
| DLE-LK-DW-2 1/2-3 | 2 1/2" - 3" | 5,000 | 10,000 | Double | 48" | 5" |
| DLE-LK-DW-3-4 | 3" - 4" | 5,000 | 10,000 | Double | 48" | 5" |
| DLE-LK-DW-4-5 | 4" - 5" | 5,000 | 10,000 | Double | 52" | 5" |
Banding Instructions
WARNING!
Read and follow all relevant Safety & Operating Instructions before using this product. It is important that you read and understand all breaking strength, safety and technical data relating to all Lewis Manufacturing Company products before use.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
For any questions or comments regarding safe usage of this product, please
