Cable Suspension Support in Conduit, 1/2″ to 5-1/2″
MADE IN USA
Pulling Grips Suspension Riser Hook Bail Model LRHB
Description
Pulling Grips Suspension Riser Hook Bail Model LRHB (LRHB Series) are designed to permanently support cable that is inserted into a conduit. Special hooked ends hook over conduit, eliminating the need for a bushing.
Pulling Grips Suspension Riser Hook Bail grips are made of single weave uncoated galvanized wire. They come in various mesh lengths (see specification chart). The ends of the wires are crimped in copper lugs.
Pulling Grips Suspension Riser Hook Bail Model LRHB
Wire Mesh Options

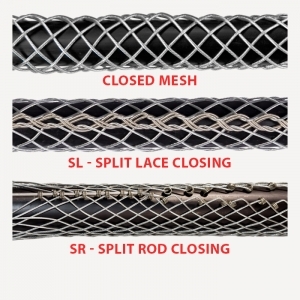

Closed Mesh, Split Rod Mesh, Split Lace Mesh, Stainless Steel Mesh
These Grip Models are available in Closed, Split Rod (SR) or Split Lace (SL) mesh configurations. Additionally for Stainless Steel (SS) mesh, you can add “SS” to the end of the part number if Stainless Steel mesh is desired.
- Closed Mesh — has no extra designation letters such SL or SR included in the part number.
- Split Rod Mesh — is indicated by adding “SR” to the end of part number.
- Split Lace Mesh — is denoted by adding “SL” to the end of part number.
- Stainless Steel Mesh — is denoted by adding “SS” to the end of part number.
Specifications
| Part No. | Size Range | WL lbs. | UTS lbs. | Weave | Mesh |
|---|---|---|---|---|---|
| LRHB-50-SW | 1/2" - 5/8" | 500 | 1,000 | Single | 8" |
| LRHB-62-SW | 5/8" - 3/4" | 500 | 1,000 | Single | 10" |
| LRHB-75-SW | 3/4" - 1 1/8" | 500 | 1,000 | Single | 12" |
| LRHB-100-SW | 3/4" - 1 1/4" | 500 | 1,000 | Single | 14" |
| LRHB-112-SW | 1 1/8" - 1 5/8" | 500 | 1,000 | Single | 14" |
| LRHB-162-SW | 1 5/8" - 2 1/2" | 700 | 1,400 | Single | 16" |
| LRHB-250-SW | 2 1/2" - 3 1/2" | 700 | 1,400 | Single | 18" |
| LRHB-350-SW | 3 1/2" - 4 1/2" | 900 | 1,800 | Single | 20" |
| LRHB-450-SW | 4 1/2" - 5 1/2" | 900 | 1,800 | Single | 22" |
Lacing Instructions
For Split-Mesh, Lace-Closing Pulling Grips & Suspension Grips
WARNING!
Read and follow all relevant Safety & Operating Instructions before using this product. It is important that you read and understand all breaking strength, safety and technical data relating to all Lewis Manufacturing Company products before use.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
For any questions or comments regarding safe usage of this product, please
